Aspire Aspirator

On Target Promo!
Item #: ASASPIRE1

2 year warranty

Technical Data:

Specifications GCM-24 GCM-R-24
Maximum Speed 15,000 rpm (200-15,000 rpm),
10 rpm increment
15,000 rpm (200-15,000rpm),
10 rpm increments
Maximum RCF 21,380 x G, (10 x G Increment) 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm +/- 20 rpm
Temperature N/A -20°C to 40°C
Rotor Capacity Twenty-Four (24) 1.5 / 2.0 mL tubes Twenty-four (24) 1.5 / 2.0 mL tubes
Run Time 30 sec - 99 min or continuous 30 sec - 99 min or continuous
Power 5A, 500W 10A, 400W
Acceleration Time 25 Seconds 25 Seconds
Braking Time 25 Seconds 25 Seconds
Dimension (W x D x H) 280 x 364 x 266 mm
(11.0 x 14.3 x 10.5")
338 x 580 x 324 mm
(13.3 x 22.8 x 12.8")
Weight 12 Kg (26.5 lbs) 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA CE, cTÜVus, FCC, MCA
Warranty 2 Years 2 Years

Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag



On Target Promo!
Receive a free V1002-S8 Eight channel Adapter ($135.68 Value).
With the purchase of
V0020.

See details HERE
  Valid through October 31st, 2022. Institutional pricing not valid. All terms apply

Aspire Aspirator

  • Compact Design
  • Built-in Vacuum Pump
  • Adjustable Vacuum Pressure
  • Vacuum Gauge
  • Safe and Precise Aspiration

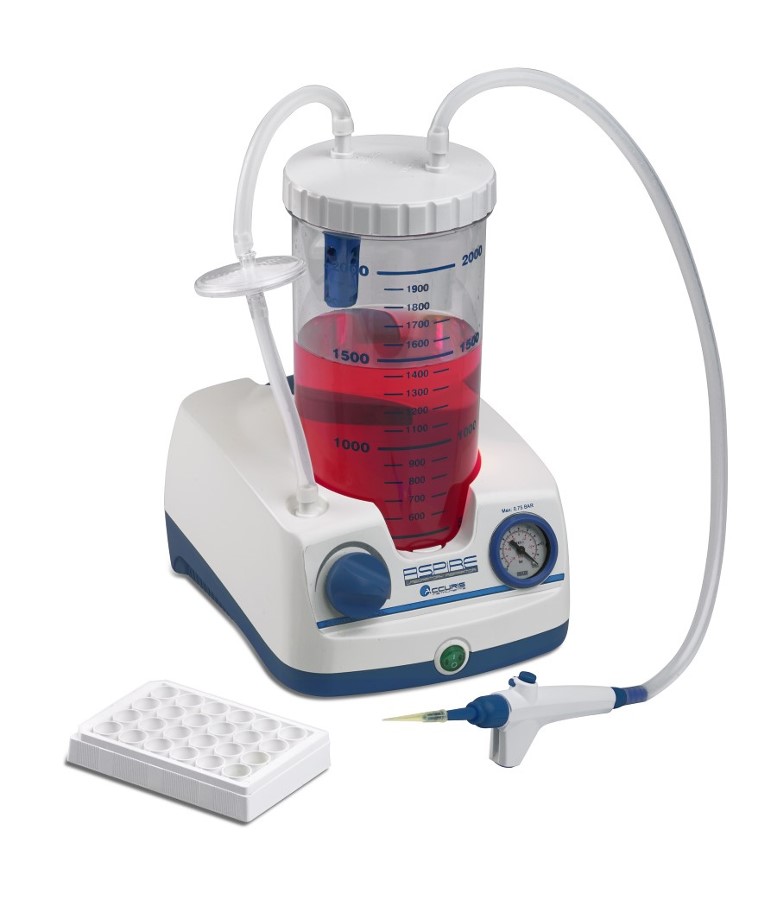

The Accuris ASPIRE Laboratory Aspirator incorporates a quiet, maintenance-free pump inside a sturdy, yet compact base. The vacuum is fully adjustable, with a pressure gauge that displays the vacuum level, allowing full control of aspirating speed. The ASPIRE is an ideal choice for a wide range of laboratory aspirating applications, including removal of media from tissue culture vessels or plates, and supernatants. An ergonomic, hand held aspirating device is included, and holds standard 200 to 300ul disposable pipette tips.

Comes complete with:

  • Base with internal vacuum pump
  • 2 Liter, Polycarbonate Collection Bottle (autoclavable and break resistant)
  • Antibacterial / Hydrophobic Filter
  • Silicone Tubing
  • Handheld Vacuum Controller
  • 2 Pipette cone adapters (for 200 ul pipette tips and 40mm stainless steel)

The collection bottle incorporates a reliable Overflow Protection Valve that closes off the tube to the vacuum in the event of a full bottle. In addition, the replaceable in-line filter protects the vacuum pump from contaminants and any moisture that comes through the bottle. Graduations on the collection bottle indicate the amount of fluid collected and when it's ready to be emptied. The Handheld Vacuum Pipette has an ergonomic design that's comfortable in the hand during prolonged use.  Pressing the button applies the vacuum. The pipette accepts Pasteur pipettes, serological pipettes, and also comes with 2 accessory pipette cones. One cone is designed to accommodate 200/300ul pipette tips, the other has a thin, stainless steel capillary for fine control aspirating.


Specifications

Max. Aspiration

14mL/sec

Max. Flow

15L/ min.

Vacuum Range

-30 to -750 mbar

Noise Level

59.6 db

Vacuum Pump

oil free piston

Dimensions

9.5x7.9x13.5 in.

Weight

4.8 lbs

Warranty

2 years



Item Numbers



V0020

115V ASPIRE Aspirator

V0020-E

230 V ASPIRE Aspirator

V0020-1SL

Extra Long Single Channel Stainless Steel Adapter

V1002-8

Eight channel adapter for 200ul pipette tips

V1002-S8

Eight channel adapter, fine tip, stainless steel

SKU Number Voltage Price Quantity Add to Cart
V1002-S8-F Eight channel adaptor,fine tip,SS
0.00
Each
V0020 Aspire Lab Aspirator, 115 v
968.00
Each
V0020-E Aspire Lab Aspirator, 230 v
968.00
Each
V0020-BOT Graduated, PC collection bottle
148.40
Each
V0020-QD Quick disconnect kit
136.74
Each
V0020-SG Silicone O-ring for Aspire 2000ml
29.68
Each

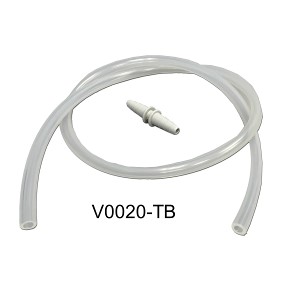

V0020-TB Extra tubing set
29.68
Each
V1002 Handheld vacuum controller w/single channel adapt
276.66
Each
V1002-S8 Eight channel adaptor,fine tip,SS
135.68
Each
V1002-1SL Single channel adaptor, XL, SS
34.98
Each
V1002-8 Eight channel adaptor
222.60
Each

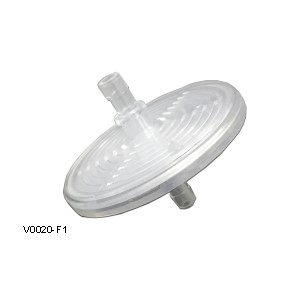

V0020-F1 Hydrophobic filter
30.74
Each
