Benchmark CO2 Incubator

Item #: ASBENCHCO2

2 year warranty

Technical Data:

Specifications GCM-24 GCM-R-24
Maximum Speed 15,000 rpm (200-15,000 rpm),
10 rpm increment		 15,000 rpm (200-15,000rpm),
10 rpm increments
Maximum RCF 21,380 x G, (10 x G Increment) 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm +/- 20 rpm
Temperature N/A -20°C to 40°C
Rotor Capacity Twenty-Four (24) 1.5 / 2.0 mL tubes Twenty-four (24) 1.5 / 2.0 mL tubes
Run Time 30 sec - 99 min or continuous 30 sec - 99 min or continuous
Power 5A, 500W 10A, 400W
Acceleration Time 25 Seconds 25 Seconds
Braking Time 25 Seconds 25 Seconds
Dimension (W x D x H) 280 x 364 x 266 mm
(11.0 x 14.3 x 10.5")		 338 x 580 x 324 mm
(13.3 x 22.8 x 12.8")
Weight 12 Kg (26.5 lbs) 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA CE, cTÜVus, FCC, MCA
Warranty 2 Years 2 Years

Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag



CO2 Incubators


This product is no longer available.

For a newer version of this product, visit here.



H3550-180, replacement is H3565-180
H3551-180P, replacement is H3565-180
H3551-45P, replacement is H3565-45

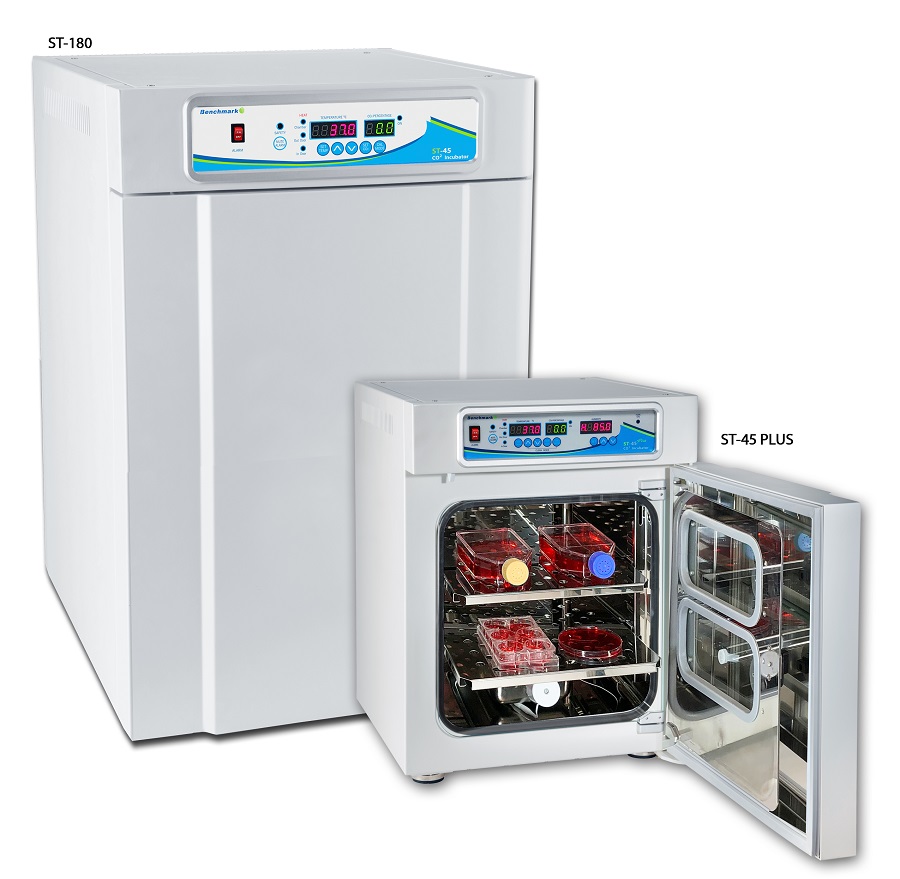

Benchmark CO2 Incubators

  • Precision temperature control, 6-sided heating
  • Precise monitoring over CO2 with dual beam IR sensor
  • Seamless, stainless-steel chamber
  • Digital control of humidity percentage (PLUS models only)

With our unique and proprietary heat distribution technology, the Benchmark ST Series of CO2 incubators provide the highest levels of temperature accuracy with minimal fluctuation (within 0.1°C). The six-side heating system, in combination with a low-speed internal fan, uniformly spreads air throughout the chamber (without air exchange from the external environment). The chamber walls are constructed of high grade (316) stainless-steel, and all corners are rounded, preventing the accumulation of dirt/debris.

For added security, all models feature an internal alarm to alert the user if the CO2 percentage changes, or the temperature fluctuates by more than 1°C from the set point. In addition, a quick-cal calibration button allows for quickly adjusting the chamber temperature to match that of a properly calibrated external thermometer.

Two series (standard and PLUS) are each available in 45L and 180L chamber sizes. PLUS models include advanced programming for high heat decontamination (at 125°C), a unique split inner glass door for access to the chamber without exposing it fully to the external environment and programmable humidity percentage, up to 95%.



Specifications

Temperature Range

Ambient +5° to 60°C

Temperature Increments

0.1°C

Temperature Uniformity

± 0.4°C*

Temperature Stability

0.1°C

Temperature Accuracy

0.1°C

CO2 Range

0 to 20%

CO2 Increment

0.10%

CO2 Accuracy

± 0.1%

CO2 Sensor

Dual Beam IR

Chamber Dimensions (45L)

13.2 x 14.2 x 15.4 in. / 33.5 x 36.1 x 39.2 cm

Chamber Dimensions (180L)

18.7 x 20.8 x 28 in. / 47.3 x 52.8 x 71 cm

Chamber Volume

45L / 180L

Chamber Material

Stainless Steel (316)

Exterior Dimensions (45L)

16.5 x 18.3 x 21.8 in. / 42 x 46.5 x 55.3 cm

Exterior Dimensions (180L)

22 x 26.2 x 37.2 in / 56 x 66.5 x 94.5 cm

Weight (45L)

77 lbs / 35 Kg

Weight (180L)

172 lbs / 78 Kg

Electrical

120V or 230V, 50-60Hz (350W)

Warranty

2 years


PLUS Models Only

High Heat Decon

125°C for 8 hours

Humidity Control

Up to 95%

Split Inner Door Compartments

45L: 2 / 180L: 6


SKU Number Jacket (water or air) Size Accessory Door Price Quantity Add to Cart
H3550-180 Air 6.36 Cu Ft [180 L] CO2 Incubator Right Hinged
7825.00
Each
  Item is no longer available.
H3551-180P Air 6.36 Cu Ft [180 L] CO2 Incubator Right Hinged
10895.00
Each
  Item is no longer available.
H3551-45P Air 1.59 Cu Ft [45 L] CO2 Incubator Right Hinged
8475.00
Each
