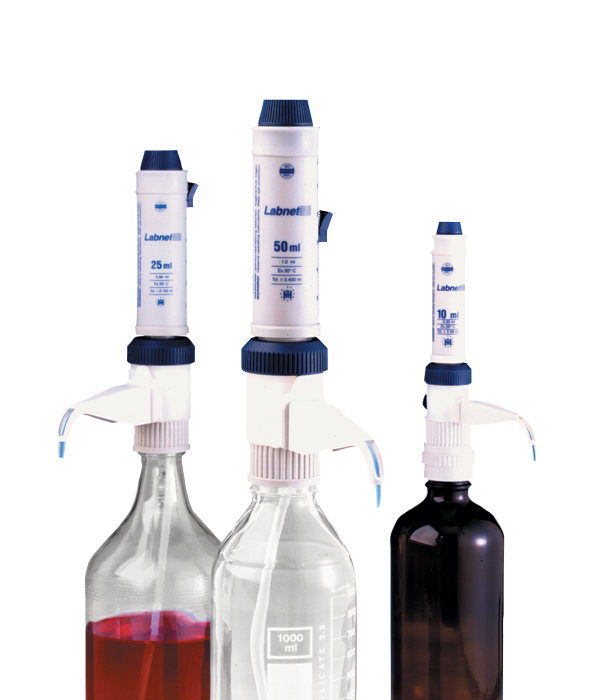

Labmax Bottle Top Dispensers

Item #: ASBOTTDISP

Dispensette S Trace Analysis Bottle Top Dispensers

Simple to mount discharge tube available with or without integrated recirculation valve
Designed without additional sealing rings for ease of cleaning and maintenance
Replaceable discharge valve with safety valve
Olive-shaped filling valve for firmer attachment of filling tubes
Improved flow technology results in faster priming
Scalloped track for secure volume setting on analog dispensers

The Dispensette^® S Trace Analysis is the next generation bottletop dispenser for precise volume dispensing of high-purity media for trace analysis. It is especially suited for dispensing acids, bases and hydrogen peroxide in the volume range from 1 to 10 mL. The components of the fluid path have been selected to only contain the highest purity materials, such as fluoroplastics and sapphire. The result is a trace metal content of dispensed liquid generally in the low ppb range, or even in the low ppt range, depending on the application. Both platinum-iridium and tantalum valve springs are available for application compatibility.

SKU Number	Vol	Price	Quantity	Add to Cart
D5370-10	2 to 10 mL	532.3500 532.35 Each
D5370-100	20 to 100 mL	864.0800 691.26 Each
D5370-2	0.3 to 2.5 mL	382.6200 306.10 Each
D5370-25	5 to 25 mL	514.3200 411.46 Each
D5370-5	1 to 5 mL	382.6200 306.10 Each
D5370-50	10 to 50 mL	554.5700 443.66 Each

Labmax Bottle Top Dispensers

Special Order

Quantity:

Request a Quote

First Name*

Last Name*

Company/Institution*

Address

Address 2

Bldg/Rm

City*

State

Zip Code*

Country

Phone*

Email*

Message

MIDSCI Promotions

By checking this box, I agree to sign up for MIDSCI emails.

Please verify your request*

For quote requests, include the specific product number(s) in the message box below. Or for a faster experience, existing customers can log in to your account, add the item(s) to your cart, and click the “Request a Quote” button at the bottom of the page during the checkout process.

Complementary Content

${loading}

Item	D5370-2	D5370-5	D5370-10	D5370-25	D5370-50	D5370-100
Range	0.3 - 2.5 mL	1.0 - 5.0 mL	2.0 - 10.0 mL	5.0 - 25.0 mL	10.0 - 50.0 mL	20.0 - 100.0 mL
Increment	0.05 mL	0.10 mL	0.20 mL	0.50 mL	1.00 mL	2.00 mL
Tolerance	0.02 mL	0.04 mL	0.08 mL	0.15 mL	0.40 mL	0.8 mL
Thread Size	33 mm	33 mm	33 mm	45 mm	45 mm	45 mm
Piston	Direct displacing, PTFE with PTFE coated viton O-ring
Cylinder	Borosilicate glass with transparent plastic safety coating
Housing	Polypropylene
Volume Adjustment	Locking rocker switch
Calibration	Automatic
Accuracy	± 0.7%
Reproductivity	± 0.1%
Autoclavable	Fully, to 121°C
Compatibility	Excellent - suitable for dispensing most reagents except HF
Warranty	1 year, parts and labor
