MyFuge 5 Mini MicroCentrifuge

Item #: ASMINCENFUGE

2 year warranty

Technical Data:

Specifications GCM-24 GCM-R-24
Maximum Speed 15,000 rpm (200-15,000 rpm),
10 rpm increment		 15,000 rpm (200-15,000rpm),
10 rpm increments
Maximum RCF 21,380 x G, (10 x G Increment) 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm +/- 20 rpm
Temperature N/A -20°C to 40°C
Rotor Capacity Twenty-Four (24) 1.5 / 2.0 mL tubes Twenty-four (24) 1.5 / 2.0 mL tubes
Run Time 30 sec - 99 min or continuous 30 sec - 99 min or continuous
Power 5A, 500W 10A, 400W
Acceleration Time 25 Seconds 25 Seconds
Braking Time 25 Seconds 25 Seconds
Dimension (W x D x H) 280 x 364 x 266 mm
(11.0 x 14.3 x 10.5")		 338 x 580 x 324 mm
(13.3 x 22.8 x 12.8")
Weight 12 Kg (26.5 lbs) 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA CE, cTÜVus, FCC, MCA
Warranty 2 Years 2 Years

Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag



MyFuge5

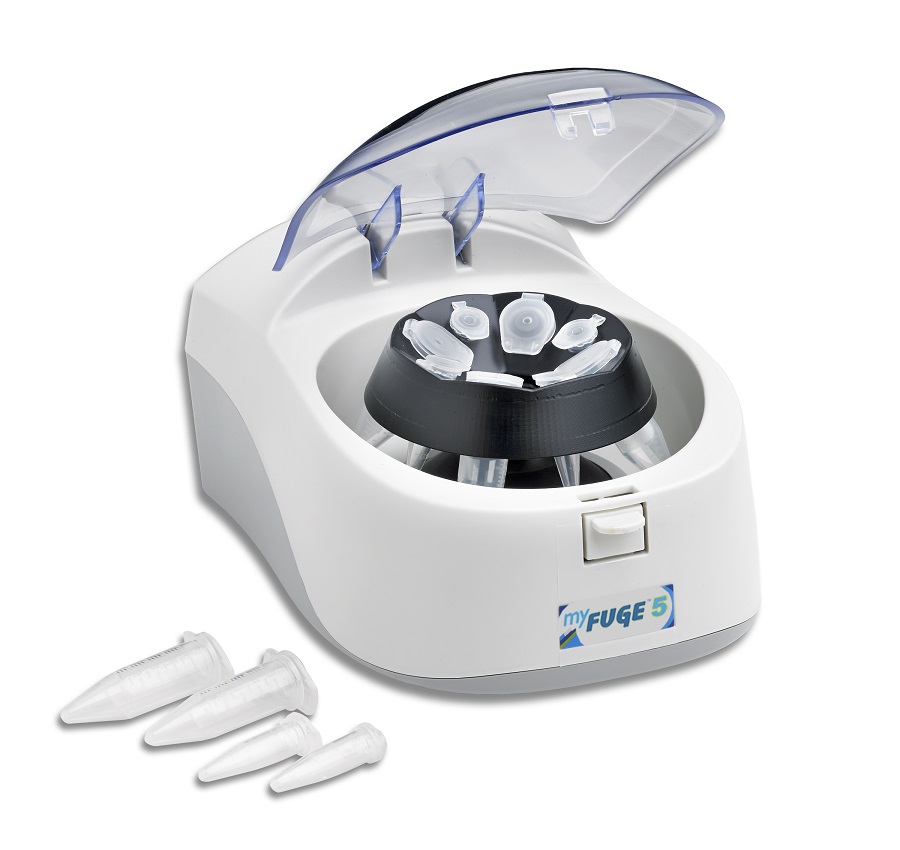

The myFuge?5 comes with a 4 position rotor for compatibility with both 1.5mL and 5mL centrifuge tubes and a variety of 5 mL test tubes with the included adapters. The rotor accepts 5mL snap cap microcentrifuge tubes and with the included adapters can also accept 5mL blood, culture tubes (12x75mm), and cryovials. Adapter packs are also available to purchase separately for the 0.5mL and 0.2 mL tubes. Simply close the lid and centrifuge accelerates quickly to a fixed speed of 5,500 rpm. Once the lid is opened, the rotor with decelerate to allow for the removal of the tubes.

  • For quick spin down of 5mL centrifuge tubes
  • Includes adapters for 5mL blood tubes
  • Starts and stops with closing/opening of the lid
  • Conserves valuable bench space with a small footprint

Technical Specifications

Speed

5500 rpm/2000xg

Capacity (with included adapters--
other adapters sold seperately)

4 x 5 mL tubes and
4 x 1.5/2.0 mL tubes

Dimensions (WxDxH)

14x20x14cm

Weight

2.2

Warranty

2 year

PNAMBMICROCEN

Type of Centrifuge
Mini Microcentrifuge
Speed
5,500 rpm
SKU Number Capacity Speed Type of Centrifuge Price Quantity Add to Cart
C1005 4x1.5/2.0ml and 4x1.5/2.0ml 5,500 rpm Mini Microcentrifuge
495.95
Each
C1005-AC2 0.5 to 2.0ml N/A Adapter
50.14
Each
C1005-E 4x1.5/2.0ml and 4x1.5/2.0ml 5,500 rpm Mini Microcentrifuge
495.95
Each
C1005-T5-RK2 50 x 5ml N/A Workstation rack
47.40
Each
MyFuge5
MyFuge 5 Mini MicroCentrifuge
Special Order
Quantity:
