Economy Natural Convection Ovens

Item #: ASNATCONOVEN

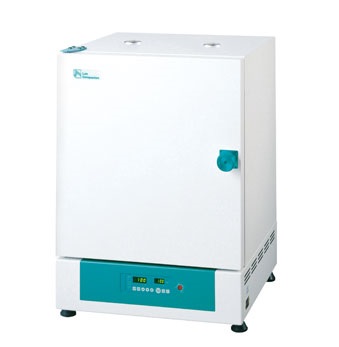

Natural Convection Oven
Operational Features Microprocessor PID control Simple calibration and auto-tuning function Temperature control: 15°C above ambient to 220°C Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min Intuitive and easy-to-operate control panel with bright LED display (1°C resolution) and touch-sensitive keypad High temperature limit setting and open door alert Convenient presetting function for 3 most commonly used temperature settings Corrosion-resistant incoloy sheath heating element and stainless steel interior Adjustable dual slide vents for controlling inner vapor circulation (diameter: 38mm/1.5") Model ON-01E ON-11E ON-21E Chamber Vol (L/cu ft) 52 / 1.8 100 / 3.5 150 / 5.3 Temp Range(°C/°F) Amb. +15 to 220 / Amb. +27 to 428 Fluctuation1)(±°C/°F)at 100°C 0.3 / 0.54 0.4 / 0.72 0.5 / 0.9 Variation1)(±°C/°F)at 100°C 6.5 / 11.7 4.1 / 7.38 7.3 / 13.14 Dimension Interior dimensions (W x D x H) (mm/inch) 375x370x370 / 14.8x14.6x14.6 455x430x510 / 18.0x17.0x20.0 585x460x555 / 23.0x18.1x21.9 Exterior dimensions (W x D x H) (mm/inch) 530x535x737 / 20.9x21.1x29.0 610x595x877 / 24.0x23.4x34.5 740x625x922 / 29.1x24.6x36.3 Net weight(Kg/lbs) 34 / 75 46 / 101.4 59 / 130 Electrical Requirements (230V) 50/60Hz, 4.3A 50/60Hz, 6.0A 50/60Hz, 7.4A Cat. No. AAH15015K AAH15025K AAH15035K Electrical Requirements (120V) 50/60Hz, 6.7A 50/60Hz, 8.3A 50/60Hz, 10.0A Cat. No. AAH15016U AAH15026U AAH15036U 1) Technical data (according to DIN 12880)

PNOVENS

Type
Natural Convection Oven
Operating Temp
ambient to 220°C
SKU Number Type Operating Temp Vol Price Quantity Add to Cart
AAH15016U Natural Convection Oven ambient to 220°C 1.8 Cu Ft
1863.74
Each
AAH15026U Natural Convection Oven ambient to 220°C 3.5 cu ft
2217.32
Each
AAH15036U Natural Convection Oven ambient to 220°C 5.3 cu ft
2661.01
Each
EDA8136 wire shelf N/A N/A
124.32
Each
Natural Convection Oven
Economy Natural Convection Ovens
Special Order
Quantity:
