PR1MA Orbi-Shaker Small

Item #: ASOS300

2 year warranty

Technical Data:

Specifications GCM-24 GCM-R-24
Maximum Speed 15,000 rpm (200-15,000 rpm),
10 rpm increment		 15,000 rpm (200-15,000rpm),
10 rpm increments
Maximum RCF 21,380 x G, (10 x G Increment) 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm +/- 20 rpm
Temperature N/A -20°C to 40°C
Rotor Capacity Twenty-Four (24) 1.5 / 2.0 mL tubes Twenty-four (24) 1.5 / 2.0 mL tubes
Run Time 30 sec - 99 min or continuous 30 sec - 99 min or continuous
Power 5A, 500W 10A, 400W
Acceleration Time 25 Seconds 25 Seconds
Braking Time 25 Seconds 25 Seconds
Dimension (W x D x H) 280 x 364 x 266 mm
(11.0 x 14.3 x 10.5")		 338 x 580 x 324 mm
(13.3 x 22.8 x 12.8")
Weight 12 Kg (26.5 lbs) 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA CE, cTÜVus, FCC, MCA
Warranty 2 Years 2 Years

Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag

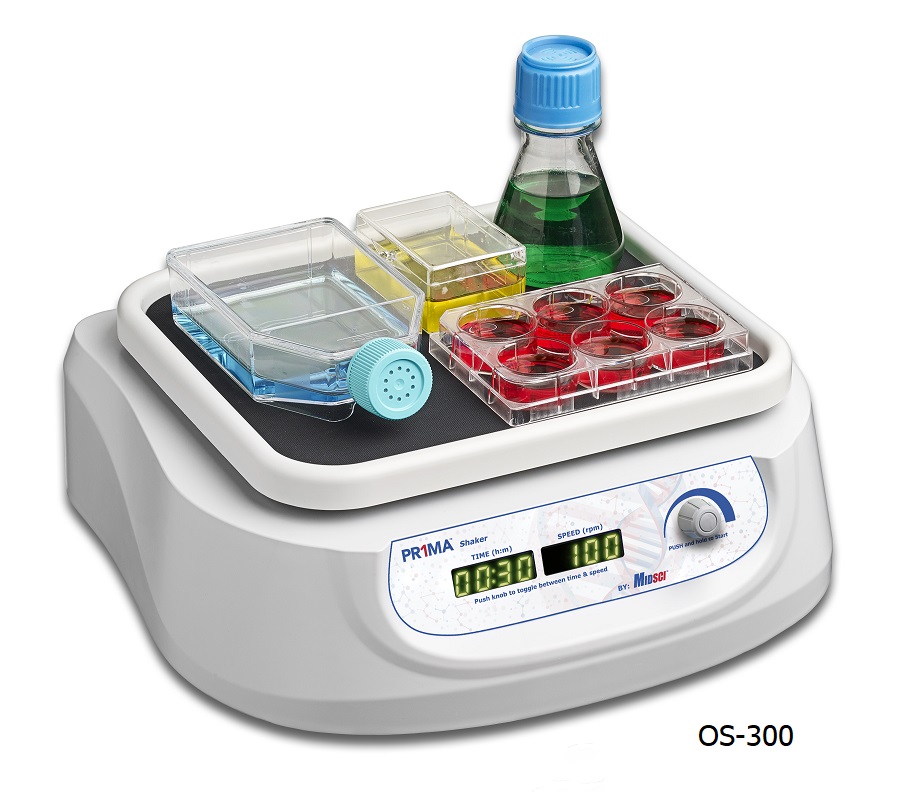

PR1MA™ Orbi-Shaker™ Small

  • Digital speed control up to 300 rpm
  • Horizontally circular 19 mm orbit for aeration & mixing
  • Extremely compact, perfect for low to medium capacity applications
  • Instantly exchange flask clamps with MAGic Clamp™ accessories

The PR1MA™ Orbi-Shaker™ Small is designed for smaller capacity applications and laboratories where bench space is at a premium. The shaker includes a 9.5 x 8" platform that mixes at a 19 mm orbit, perfect for thorough mixing and aeration in Erlenmeyer flasks.

An optional MAGic Clamp™ platform is available for use with Erlenmeyer flasks and test tube racks. The unique magnetic attachment method is the easiest way to instantly change between flask clamps of different sizes. (PATENTED)



Speed

Variable, 50 to 300 rpm

Orbit

19 mm

Max. Capacity:

4 x 1 L (9 lbs / 4 kg)

Speed Increment

10 rpm

Platform Dimensions

9.5 x 8 in. | 24 x 20 cm (Included)
11.5 x 9.5 in. | 29 x 24 cm (MAGic Clamp)

Operating Temp. Range

+4°C to +65°C

Dimensions
(w x d x h)

13.1 x 11.74 x 4.7 in. (33 x 30 x 12 cm)

Weight

12 lbs (5.5 kg)

Timer

1 min up to 99 hours (or continuous)

Electrical

Universal Voltage, 100-240 V, 50-60 Hz 250 W

Warranty

2 Years
Flipper 96 Rack w/lid,


Microcentrifuge Slide Spi


Lab Doctor Vornado Mini

211.89
Each
SKU Number Type Capacity/Volume Price Quantity Add to Cart
OS-300 Orbital Shaker (Small) 9.5 x 8 in.
1084.47
Each
IS-PLAT Platform 9.5 x 11.5 in.
263.76
Each
H1000-MR-CMB MAGic Clamp COMBO 125mL, 250mL, 500mL Flasks
47.32
Each
