Home  >  Equipment  >  Hotplates and Stirrers  >  Stirrers  > Benchmark OS-20L and OS40L Overhead Stirrers

Benchmark OS-20L and OS40L Overhead Stirrers

On Target Promo!
Item #: ASOVERHDSTIR

2 year warranty

Technical Data:

Specifications GCM-24 GCM-R-24
Maximum Speed 15,000 rpm (200-15,000 rpm),
10 rpm increment		 15,000 rpm (200-15,000rpm),
10 rpm increments
Maximum RCF 21,380 x G, (10 x G Increment) 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm +/- 20 rpm
Temperature N/A -20°C to 40°C
Rotor Capacity Twenty-Four (24) 1.5 / 2.0 mL tubes Twenty-four (24) 1.5 / 2.0 mL tubes
Run Time 30 sec - 99 min or continuous 30 sec - 99 min or continuous
Power 5A, 500W 10A, 400W
Acceleration Time 25 Seconds 25 Seconds
Braking Time 25 Seconds 25 Seconds
Dimension (W x D x H) 280 x 364 x 266 mm
(11.0 x 14.3 x 10.5")		 338 x 580 x 324 mm
(13.3 x 22.8 x 12.8")
Weight 12 Kg (26.5 lbs) 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA CE, cTÜVus, FCC, MCA
Warranty 2 Years 2 Years

Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag



On Target Promo!
*Receive a free VM1-B-F (BV101-B), MF12-F (C1012) or E5001-SD-F (E5001-SD)
 *Choose 1


-- Up to $400 Value --

With the purchase of IPS2050-20 or IPS2050-40


See details HERE
  Valid through October 31st, 2022. Institutional pricing not valid. All terms apply

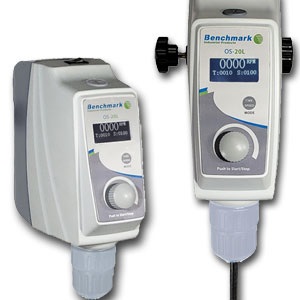

 Benchmark™ OS-20L and OS40L Overhead Stirrers

  • LCD control panel
  • Includes compete stand assembly and 4 arm propeller
  • Compact and quiet
  • Digital accuracy and control

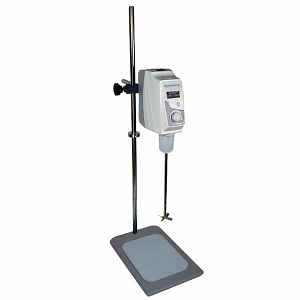

Benchmark's Overhead Stirrers feature advanced LCD controls for accurate display of both speed and run time. The stirrers include a support stand complete with mounting hardware. The mixer is easily attached at the desired height for compatibility with a wide range of vessels (up to 24 inches tall). The stand and 4-arm propeller are included. A wide range of optional propellers and paddles are available separately. Each of these mixing accessories is available in stainless steel or inert Teflon. All accessories are easily attached to the mixer without tools or hardware. To guard against potential corrosion when using hazardous or corrosive solutions, a cover fits over the connection mechanism to protect the unit and improve the long-term safety and reliability of the instrument.

Specifications

ModelOS-20LOS-40L
Mixing Capacity (H20)20 L40 L
Maximum Torque40 Ncm60 Ncm
Input Power60 W120 W
Output Power50 W100 W
Net Weight (Mixer)2.6 kg2.8 kg
Maximum Viscosity10,000 mPas50,000 mPas
Speed Range30 to 2,200 rpm
Motor TypeDC brushless motor
Chuck Diameter Range0.5 to 10 mm
Exterior Dims. (WxDxH)7.3 x 3.3 x 8.7 in. | 18.6 x 8.3 x 22.0 cm.
Protection ModeIP42
Ambient Operating Range5 to 40°C
Electrical100-240 AC, 50-60 Hz
Warranty2 years




SKU Number Spinning Capacity Speed Price Quantity Add to Cart
IPS2050-P-S1 Stainless Steel One Line Propeller 30 to 2,200 rpm
89.00
Each
IPS2050-P-S2 Stainless Steel Centrifugal Impeller 30 to 2,200 rpm
89.00
Each
IPS2050-P-S3 Stainless Steel Paddle w/ Flat Holes 30 to 2,200 rpm
89.00
Each
IPS2050-P-S4 Stainless Steel 4-Arm Propeller 30 to 2,200 rpm
89.00
Each
IPS2050-P-T1 Teflon One Line Propeller 30 to 2,200 rpm
139.00
Each
IPS2050-P-T2 Teflon Centrifugal Impeller 30 to 2,200 rpm
139.00
Each
IPS2050-P-T3 Teflon Paddle w/ Flat Holes 30 to 2,200 rpm
139.00
Each
IPS2050-P-T4 Teflon 4-Arm Propeller 30 to 2,200 rpm
139.00
Each
IPS2050-20 Overhead Stirrer 20 L 30 to 2,200 rpm
859.00
Each
IPS2050-40 Overhead Stirrer 40 L 30 to 2,200 rpm
1349.00
Each
VM1-B-F N/A N/A
0.00
Each
MF12-F N/A N/A
0.00
Each
E5001-SD-F N/A N/A
0.00
Each
Benchmark OS-20L and OS40
Benchmark OS-20L and OS40L Overhead Stirrers
Special Order
Quantity:
