PR1MA Mini Gel

Electrophoresis System
Item #: ASPCRELCTP25

2 year warranty

Technical Data:

Specifications GCM-24 GCM-R-24
Maximum Speed 15,000 rpm (200-15,000 rpm),
10 rpm increment
15,000 rpm (200-15,000rpm),
10 rpm increments
Maximum RCF 21,380 x G, (10 x G Increment) 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm +/- 20 rpm
Temperature N/A -20°C to 40°C
Rotor Capacity Twenty-Four (24) 1.5 / 2.0 mL tubes Twenty-four (24) 1.5 / 2.0 mL tubes
Run Time 30 sec - 99 min or continuous 30 sec - 99 min or continuous
Power 5A, 500W 10A, 400W
Acceleration Time 25 Seconds 25 Seconds
Braking Time 25 Seconds 25 Seconds
Dimension (W x D x H) 280 x 364 x 266 mm
(11.0 x 14.3 x 10.5")
338 x 580 x 324 mm
(13.3 x 22.8 x 12.8")
Weight 12 Kg (26.5 lbs) 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA CE, cTÜVus, FCC, MCA
Warranty 2 Years 2 Years

Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag



PR1MA Gel System

LabDoctor E1101 is now PR1MA™ EMINIGEL - New name, same great product.
If you have any questions please email tech@midsci.com

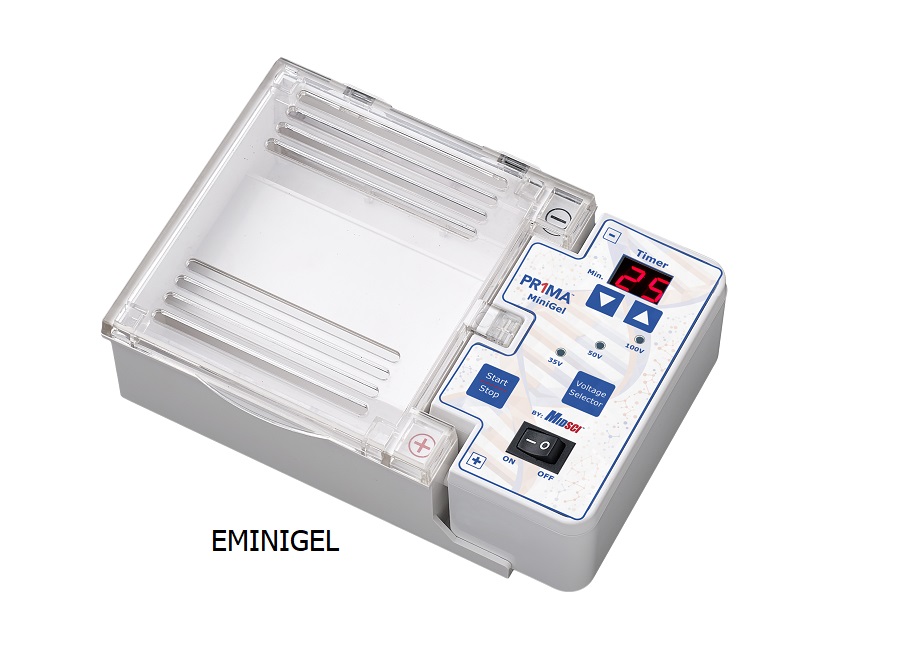

PR1MA™ Mini Gel Electrophoresis System

  • Complete system, includes gel box, power supply and casting sets
  • Quick and easy gel casting, no tape, clamps or spacers required
  • Compact design, footprint: 7 x 5.1 in.

The PR1MA™ Mini Gel electrophoresis system includes all of the equipment that you need to get up and running: gel tank, power supply and two casting sets. Ideal for personal use, small laboratories or the classroom, this gel box/power supply combination is compact and easy to use.

The mini gel box attaches directly to the power supply for a secure connection every time. Selectable parameters include 3 preset voltages – 35V, 50V or 100V – and a 99-minute timer. All are set using the membrane keypad.

The safety lid is vented to help dissipate heat generated during electrophoresis and features a viewing area above the gel. Current will only run through the system when the lid is properly in place on top of the gel box.

Trays and casting stands for both 10.5 x 6 cm and 5 x 6 cm gels are included with the MyGel Mini system, as are double-sided combs. The smaller tooth combs are compatible with multi-channel pipettes. Casting is quick and easy – just place the tray in the casting stand and pour. The trays feature a dark contrast strip to help visualize wells while loading and lines that fluoresce under UV and blue light to track progress of the run.


Specifications

Output Voltage

35V, 50V or 100V

Timer

0-99 min. or Cont.

Safety

Lid interlock

Max. Buffer

230 mL

Gel Capacity

One: 10.5 x 6 cm
Two: 5 x 6 cm

Weight

1 lbs | 0.45 kg

Dimensions

7.5 x 5.1 x 2.1 in

Electrical

115V or 230V, 50-60 Hz


336.16
Each
SKU Number Type Size Teeth Thickness Qty Price Quantity Add to Cart
EMINIGEL Horizontal System 10.5 x 6 cm & 5 x 6 cm Gels Varies N/A 1
577.70
Each
E1101-COMB1 Reversible Comb N/A 22/12 N/A 2
8.80
Each
E1101-COMB2 Reversible Comb N/A 18/10 N/A 2
11.00
Each
E1101-CS1 Gel Casting Stand 10.5 x 6cm N/A N/A 1
45.10
Each
E1101-CS2 Gel Casting Stand 5 x 6cm N/A N/A 1
71.50
Each
PR1MA Gel System
PR1MA Mini Gel
Special Order
Quantity:
