20 X 25cm Horizontal Electrophoresis System

20 x 25cm
Item #: ASPCRELCTP5
Gel Size: 20cm(W) x 25cm(L)
Buffer volume: 1200ml

The IB56000 HR2025 is a high resolution system ideal for separation of nucleic acids  in agarose gels. It is also designed for rapid screening of PCR fragments, RFLP analysis or
plasmid screening, field inversion, genomic DNA separations and electrophoresis  procedures requiring recirculation. Constructed of 3/8" cast acrylic to provide years of
trouble-free service. Withstands high voltage and high temperatures and will not warp or crack like molded units do.

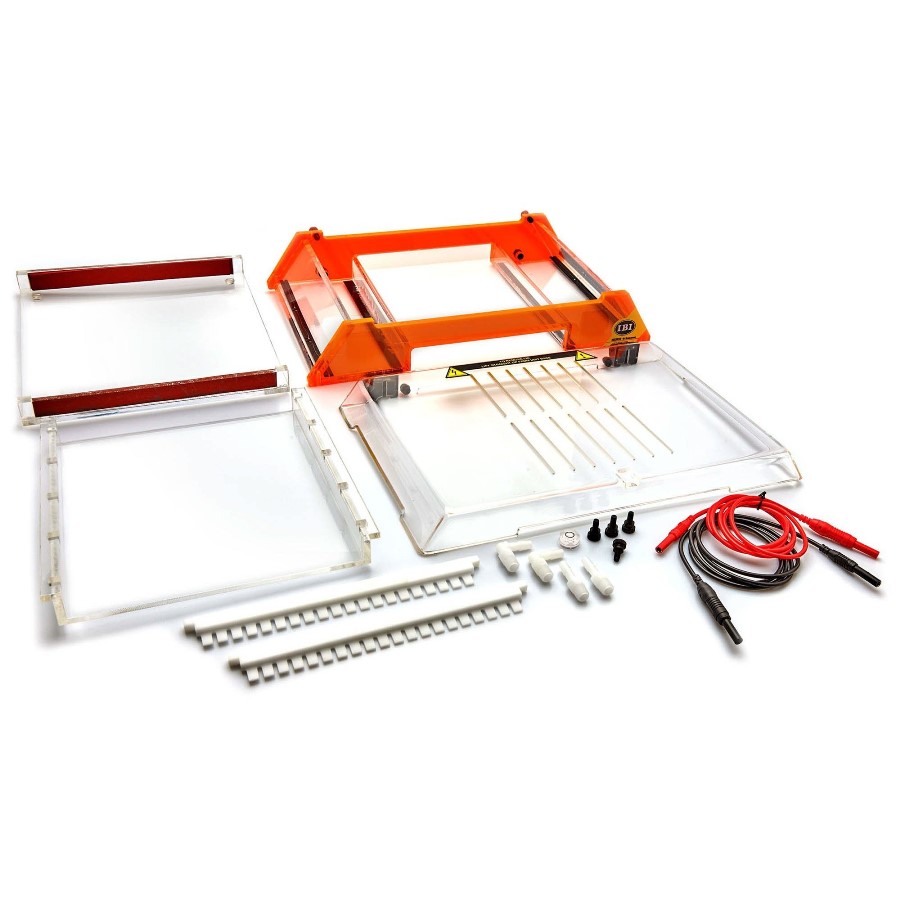

This System Comes Complete with:

  • Buffer Tank
  • Patented Vented Lid
  • IB56020 UVT Casting Tray
  • IB56030 Casting Fixture
  • Two, 2.0mm x 20-tooth combs
  • Power Cords
  • Bubble Level
  • Buffer Ports
  • 4 year warranty



Specifications:

Unit Dimensions: 8.3cm(H) x 26.7cm(W) x 39.4cm(L)

Gel Dimensions: 20cm x 25cm

Maximum sample capacity: 160 samples (4 combs, 40 samples each)

Buffer Capacity: 1200ml

Distance between electrodes: 35cm

PNELECTPHO

Type
Electrophoresis system
Size
20 x 25cm
SKU Number Type Size Teeth Thickness Qty Price Available Quantity Add to Cart
IB54060 Comb N/A 20 1mm 2
131.97
Each
Special Order
IB54080 Comb N/A 20 3mm 2
131.97
Each
Special Order
IB54090 Comb N/A 30 1mm 2
131.97
Each
Special Order
IB54100 Comb N/A 30 2mm 2
131.97
Each
Special Order
IB54110 Comb N/A 30 3mm 2
131.97
Each
Special Order
IB54120 Comb N/A 3 1mm 2
131.97
Each
Special Order
IB54130 Comb N/A 3 2mm 2
131.97
Each
Special Order
IB54140 Comb N/A 4 1mm 2
131.97
Each
Special Order
IB54150 Comb N/A 4 2mm 2
131.97
Each
Special Order
IB54180 Comb N/A 10 1mm 2
131.97
Each
Special Order
IB54190 Comb N/A 10 2mm 2
131.97
Each
Special Order
IB54220 HR-20225/HRH QuickLoader N/A N/A N/A 1
126.57
Each
Special Order
IB56000 Electrophoresis system 20 x 25cm N/A N/A 1
788.68
Each
Special Order
IB56020 HR-20225/HRH QuickLoader N/A N/A N/A 1
133.31
Each
Special Order
IB56030 Casting Fixture N/A N/A N/A 1
126.57
Each
Special Order
IB56040 HR2025 Casting System N/A N/A N/A 1
206.02
Each
Special Order
IB56050 Comb N/A 12 1mm 2
131.97
Each
Special Order
IB56055 Comb N/A 15 1mm 2
131.97
Each
Special Order
IB56100 Comb N/A 40 1mm 2
131.97
Each
Special Order
IB56101 Comb N/A 44 1mm 2
131.97
Each
Special Order
IB56102 Comb N/A 44 2mm 2
131.97
Each
Special Order
IB56103 Comb N/A 44 3mm 2
131.97
Each
Special Order
IB56115 Comb N/A 12 2mm 2
131.97
Each
Special Order
IB56125 Comb N/A 15 2mm 2
131.97
Each
Special Order
IB56135 Comb N/A 40 2mm 2
131.97
Each
Special Order
IB56140 Comb N/A 40 3mm 2
131.97
Each
Special Order
IB56145 Comb N/A 3 3mm 2
131.97
Each
Special Order
IB56150 Comb N/A 4 3mm 2
133.68
Each
Special Order
IB56200 Replacement Tank N/A N/A N/A 1
296.23
Each
Special Order
IB56300 Replacement Lid N/A N/A N/A 1
158.90
Each
Special Order
IB56305 Replacement Electrode Assembly N/A N/A N/A 1
79.44
Each
Special Order
8091100 Comb N/A 22 2mm 2
133.31
Each
Special Order
8093767 Comb N/A 22 3mm 2
133.31
Each
Special Order
8695108 Comb N/A 11 3mm 2
110.40
Each
Special Order
8920316 Comb N/A 11 2mm 2
110.40
Each
Special Order
