AccuSeal Semi Automated Plate Sealer

Item #: ASPCRFILM8

2 year warranty

Technical Data:

Specifications GCM-24 GCM-R-24
Maximum Speed 15,000 rpm (200-15,000 rpm),
10 rpm increment		 15,000 rpm (200-15,000rpm),
10 rpm increments
Maximum RCF 21,380 x G, (10 x G Increment) 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm +/- 20 rpm
Temperature N/A -20°C to 40°C
Rotor Capacity Twenty-Four (24) 1.5 / 2.0 mL tubes Twenty-four (24) 1.5 / 2.0 mL tubes
Run Time 30 sec - 99 min or continuous 30 sec - 99 min or continuous
Power 5A, 500W 10A, 400W
Acceleration Time 25 Seconds 25 Seconds
Braking Time 25 Seconds 25 Seconds
Dimension (W x D x H) 280 x 364 x 266 mm
(11.0 x 14.3 x 10.5")		 338 x 580 x 324 mm
(13.3 x 22.8 x 12.8")
Weight 12 Kg (26.5 lbs) 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA CE, cTÜVus, FCC, MCA
Warranty 2 Years 2 Years

Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag



Plate Sealer

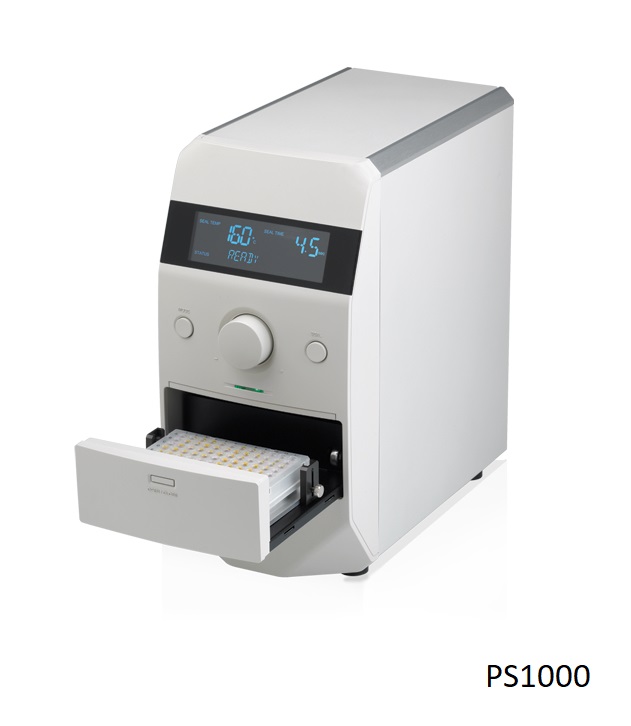

AccuSeal Semi Automated Plate Sealers from MIDSCI are engineered and constructed by Labnet International, Inc to maximize PCR, assay and storage applications with a user friendly panel and automated sealing options.


Great emphasis has been placed on incorporating a wide range of standard heights to deep well microplates with appropriate adaptors to efficiently fit the plates for consistent temperature regulation. The AccuSeal sealer is optimized for simple digital control and operation, user-friendly versatility and convenience as well as safety.


Controls and Operation:

  • Intuitive layout permits optimal sealing time, temperature and settings
  • Includes a "No Heat" setting for pressure sealing applications

Versatility and Convenience:

  • Adaptors specific for a PCR plate or an assay plate accommodates a variety of fits
  • Automatically adjusts heat for different height plates
  • Provides uniform pressure for a quality seal with special non-stick coating to prevent messy cleanup.

Safety:

  • Motorized drawer features safety switches and prevents injury to the user.

Specifications:


Dimensions

6.75x12.75x14.25 inches

Weight

24 Lbs

Sealing Temperature

OFF, 100 to 190 °C

Temperature Accuracy

+/- 1.00 °C

Temperature Uniformity

+/- 1.00 °C

Sealing Time

0.5 to 10 sec

Compatible Plate Materials

PP (Polypropylene)
PS (Polystyrene)
PE (Polyethylene)

Compatible Plate Types

Standard Assay Plates
Deep-well Storage Plates
PCR Plates: skirted, semi-skirted, non-skirted

Maximum Plate Height

45mm

Compatible Sealing Film Types

Foil-polypropylene laminate
Clear polyester-polypropylene laminate
Clear polymer
Thin clear polymer
Foil-laminate
Foil

Adapters

PS1000-PCR AccuSeal PCR plate adapter for sealing PCR and 384 well plates
PS1000-ADAPT AccuSeal Assay plate adapter for sealing assay plates



Catalog Number

Description of Sealing Film

PS100-GP111
  • General purpose pierceable aluminum film
  • Solvent resistant
  • Ideal for storage of samples
  • 100 films/unit, 10 units/cs



PS1000-GP300
  • General purpose, paper backed, peelable film
  • Ideal for low temperature storage & PCR plates
  • 100 films/case



PS1000-100
  • Polyester backed film for use with PP microplates
  • Ideal for QPCR due to good optical characteristics
  • 100 films/unit



PS1000-150
  • Polyester backed film for use with PP, PS & COC microplates
  • Ideal for QPCR due to good optical characteristics
  • 100 films/unit, 5 units/cs



PS1000-200
  • Peelable film for low temperature storage (down to -200 °C), ideal for PP & COC microplates
  • Provides barrier resistance to aqueous solutions & moderate resistance to solvents at room temperature
  • Forms weld seal with PE plates
  • 100 films/unit, 5 units/cs



PS1000-300
  • Aluminum foil film ideal for use with PP plates
  • Strong, pieraceable seal that provides high degree of sample protection & good solvent resistance to DMSO when stored at room temperature
  • 100 films/unit, 5 units/cs



PS1000-400
  • Peelable film ideal for PP & COC microplates
  • Can be peeled directly from freezer and ideal for low temp and room temperature storage
  • Forms weld seal to PE plates
  • Provides barrier resistance to aqueous solutions and solvents at room temperature & below
  • 100 films/unit, 5 units/
Mini Microcentrifuges


TC9639 Thermal Cycler


SKU Number Type of Film Cut Pkg Qty Price Quantity Add to Cart
PS1000 Semi Automated Plate Sealer N/A N/A 1
7106.97
Each
PS1000-ADAPT Assay Plate Adapter N/A N/A 1
293.64
Each
PS1000-150 QPCR REGULAR Non-Sterile 500
862.67
Each
PS1000-200 Low Temp REGULAR Non-Sterile 500
870.08
Each
PS1000-300 Storage REGULAR Non-Sterile 500
872.97
Each
PS1000-400 Compound Storage REGULAR Non-Sterile 500
845.67
Each
