Mini CO2 incubated shaker

Item #: ASSHAKER100

Mini CO2 Incubated Shaker


Ideal for the culturing cells, the Incu-Shaker CO2 Mini combines a precision CO2 incubation chamber with an integral orbital shaker, providing the optimum conditions for suspension cell culture. A belt-less motor drive provides a horizontally circular shaking motion at a consistent 19 mm orbit. The included platform (9.5 x 11.5 in.) can be used for low speed shaking of a variety of laboratory vessels, including Erlenmeyer flasks, culture plates, media bottles, and bioreactors. For higher speed mixing, a MAGic Clamp platform is available for magnetic attachment of flask clamps and tube racks.

The six-side heating system in combination with a low speed internal fan uniformly spreads air throughout the stainless steel chamber (without air exchange from the external environment). For applications requiring solely gravity convection, this internal fan can be disabled, significantly reducing the concern of sample to sample contamination.

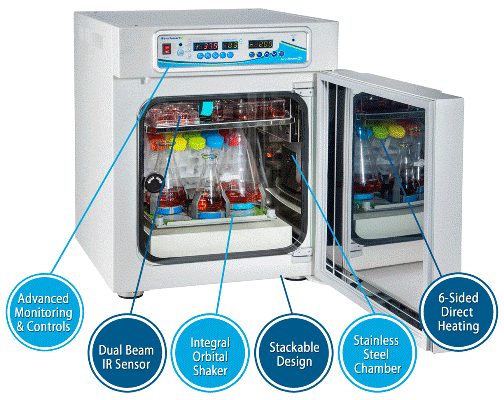

Key Features:

  • Six side direct heating for excellent uniformity and recovery
  • Integral, MAGic clamp orbital shaker, idea for suspension cell culture
  • Dual Beam IR sensor, for precise CO2 control.
  • Stackable design with belt-less motor which limit vibration and provide a smooth, consistent shaking motion.
  • Stainless steel chamber with rounded corners for easy cleaning.

TECHNICAL DATA:



Temperature Range:

Ambient +5 to 60°C

Temperature Accuracy:

±0.5°C*

Temperature Uniformity:

±0.5°C*

Temperature Increment:

0.1°C

Temperature Stability:

0.1°C*

Speed Range:

30 to 300 rpm

Speed Increment:

1 rpm

Mixing Orbit:

19 mm (3/4 in)

CO2 Range:

0 to 20%

CO2 Increment:

0.1%

CO2 Accuracy:

±0.1%

CO2 Sensor:

Dual Beam IR

Time Range:

1 min. to 48 hours (or continuous)

Platform Dimensions:

9.5 x 11.5 in. (23.5 x 29 cm)

Chamber Dimensions:

13.2 x 10.25 x 15.4 in.
(33.5 x 26 x 39.2 cm)

Chamber Volume:

46 L

Chamber Material:

Stainless Steel

Exterior Dimensions:

16.5 x 18.3 x 21.8 in.
(42 x 46.5 x 55.3 cm)

Weight:

90 lbs / 40.1 kg

Electrical:

120V or 230V, 50-60Hz (350W)

* At a set temperature of 37.0°C

MAXIMUM CAPACITY CHART:

50 mL
Flasks

125 mL
Flasks

250 mL
Flasks

500 mL
Flasks

1000 mL
Flasks

Micro
Plates

15 mL
Tubes

50 mL
Tubes

20

12

8

5

4

4

64

30





ORDERING INFORMATION:



H3501*

Incu-Shaker CO2 Mini, with non-slip rubber mat platform (9.5 x 11.5 in)

115V

MAGic Clamp Accessories

IS-PLAT

MAGic Clamp Universal Platform, 9.5 x 11.5 inch

H1000-MR-CMB

MAGic Clamp Adjustable Flask Clamp, for 125, 250 & 500 mL
Erlenmeyer Flasks (max. 12 x 125 mL, 8 x 250 mL or 5 x 500 mL)

IS-50

Magic Clamp Flask Clamp, for 50 mL Erlenmeyer Flask (max. 20)

IS-125

Magic Clamp Flask Clamp, for 125 mL Erlenmeyer Flask (max. 12)

IS-250

Magic Clamp Flask Clamp, for 250 mL Erlenmeyer Flask (max. 8)

IS-500

Magic Clamp Flask Clamp, for 500 mL Erlenmeyer Flask (max. 5)

IS-1000

Magic Clamp Flask Clamp, for 1 L Erlenmeyer Flask (max. 4)

IS-T 15

Magic Clamp Tube Rack, 32 x 15 mL (max. 2)

IS-T50

Magic Clamp Tube Rack, 15 x 50 mL (max. 2)

IS-1550

Magic Clamp Tube Rack, 32 x 15 mL (max. 1)

IS-T600

Magic Clamp Tube Rack, 4 x 500/600 mL bottles

IS-MR-TSR

Magic Clamp Slanted Tube Rack Holder, holds tube racks at an adjustable angle

Additional Accessories

IS-PMP

Dedicated Platform, 4 x microplates

IS-PSR

Universal Spring Platform

*230V option is also available.
