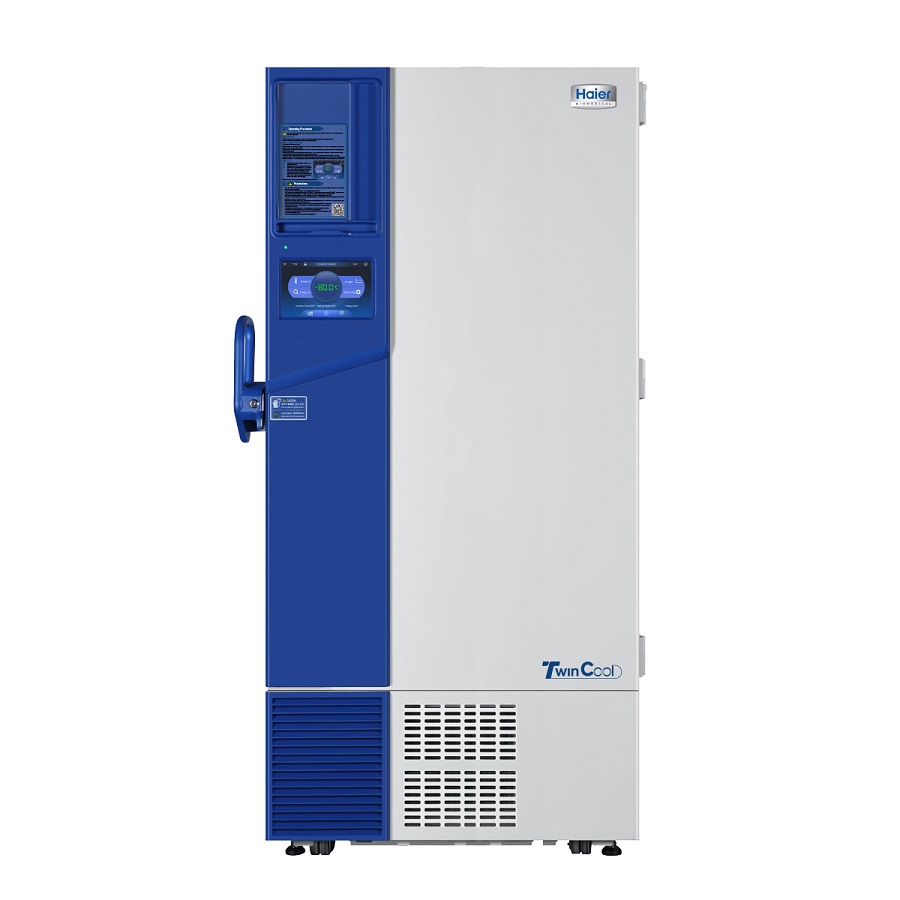

Haier TwinCool -86°C ULT Freezers with Touchscreen

Limited-Time Promo Offer!
Item #: ASTWINCOOLUPR


3 years on all parts and 5 years on the compressor

Specifications

Technical Data
DW-86L578ST
DW-86L728ST
DW-86L578SAT
DW-86L728SAT
Type
-86L°C ULT Freezer
-86L°C ULT Freezer
-86L°C ULT Freezer
-86L°C ULT Freezer
Cabinet Type
Upright
Upright
Upright
Upright
Climate Class
N
N
N
N
Cooling Type
Direct cooling
Direct cooling
Direct cooling
Direct cooling
Defrost Mode
Manual
Manual
Manual
Manual
Refrigerant
HC
HC
HC
HC
Noise Lever (dB)
53
50
53
50
Performance


Cooling performance
-86°C
-86°C
-86°C
-86°C
Temperature Range
-40°C to -86°C
-40°C to -86°C
-40°C to -86°C
-40°C to -86°C
Control


Controller
Microprocessor
Microprocessor
Microprocessor
Microprocessor
Display
LCD
LCD
LCD
LCD
Electrical Data


Power Supply
115V, 60Hz
115V, 60Hz
220-240V, 50Hz / 115V, 60Hz
220-240V, 50Hz
Power
1400W
1400W
1400W
1400W
Electrical Current
10A
10A
10A
10A
Dimensions


Capacity
578 L / 20.4 Cu Ft
728 L / 25.7 Cu Ft
578 L / 20.4 Cu Ft
728 L / 25.7 Cu Ft
Net/Gross Weight(approx)
325/355 kg
350/385 kg
325/355 kg
350/385 kg

717.1/783.3 lbs

771.6/848.8 lbs
717.1/783.3 lbs

771.6/848.8 lbs
Interior Dimensions (w x d x h)
620 x 716 x 1310 mm
766 x 716 x 1310 mm
620 x 716 x 1310 mm
766 x 716 x 1310 mm

24.4 x 28.2 x 51.6 in
30.2 x 28.2 x 51.6 in
24.4 x 28.2 x 51.6 in
30.2 x 28.2 x 51.6 in
Exterior Dimensions (w x d x h)
895 x 998 x 1980 mm
1046 x 998 x 1980 mm
895 x 998 x 1980 mm
1046 x 998 x 1980 mm

35.2 x 39.3 x 78.0 in
41.2 x 39.3 x 78.0 in
35.2 x 39.3 x 78.0 in
41.2 x 39.3 x 78.0 in
Packing Dimensions (w x d x h)
950 x 1055 x 2150 mm
1100 x 1105 x 2150 mm
950 x 1055 x 2150 mm
1100 x 1105 x 2150 mm

37.4 x 41.5 x 84.6 in

43.3 x 43.5 x 84.6 in

37.4 x 41.5 x 84.6 in

43.3 x 43.5 x 84.6 in
Container load (20'/40'/40'H)
12/24/2024
10/20/2020
12/24/2024
10/20/2020
Alarms


High/Low Temperature
Y
Y
Y
Y
Hot Condenser
Y
Y
Y
Y
Power Failure
Y
Y
Y
Y
High/Low Voltage
Y
Y
Y
Y
Sensor Error
Y
Y
Y
Y
Low Battery
Y
Y
Y
Y
High Ambient Temp
Y
Y
Y
Y
Door Ajar
Y
Y
Y
Y
Accessories


Caster
Y
Y
Y
Y
Foot
Y
Y
Y
Y
Test Hole
Y/2
Y/2
Y/2
Y/2
Shelves/Inner Doors
3/4

3/4

3/4

3/4
USB Interface
Y
Y
Y
Y
Remote Alarm
Y
Y
Y
Y
5V Power Supply Port
Y
Y
Y
Y
Temperature Recorder
Optional
Optional
Optional
Optional
Rs232/485 Interface
Optional
Optional
Optional
Optional
CO2 Backup System
Optional
Optional
Optional
Optional
LN2 Backup System
Optional
Optional
Optional
Optional


For a limited time, Purchase any Haier’s ULT series, TwinCool,
Smart Frequency, Energy Savings Salvum J Series



And get:

One Shelf of Slider Racks and Dock to Dock Shipping for Contiguous USA for FREE!




See promotional details - Here



Promo valid through September 30, 2022

This promo cannot be combined with other promotions or discounts. Institutional pricing not valid. All terms apply.


Haier TwinCool -86°C ULT Freezers with Touchscreen

  • Dual independent refrigeration systems for maximum sample safety
  • High speed refrigeration system for faster pull down and temperature recovery after door opening
  • World leading energy saving refrigeration technology
  • Smart full-size touchscreen
  • Wireless monitoring connectivity

The TwinCool ULT freezer can used for the storage and protection of valuable samples which require strict and continuous storage conditions such as viruses, pathogens, red blood cells, while blood cells, skin, bones, bacteria, semen and other biological products and special materials.  Designed to operate even in the event of a compressor failure.  Applicable to many storage requirements found within blood storage facilities, hospitals, disease control and prevention centers, scientific research institutions, biomedical engineering institutes and electronics and chemical industry.

  • Intelligent Dual System ULT Refrigeration - Two independent refrigeration systems designed to ensure optimal reliability, longevity and efficiency.
  • Maximum Energy Efficiency - 50% more energy efficient than standard ULT refrigeration systems.
  • Fast Cabinet Pull Down - Takes only 3 hours to cool from +25C ambient to -80C.
  • High Efficiency - High efficiency cooling fans and compressors combined with hydrocarbon refrigerants ensure energy savings and long-term sample security.
  • Multi Layered Sealing Structure - Triple of layer of gaskets split between main and inner doors decreases heat loss and guarantees excellent warm up times in the event of a power failure.
  • Pressure Equalization Port - Heated port with spring assisted mechanism to prevent icing on the vent allows users to reopen the main door soon after entering.
  • Improved Handle Design - Lockable handle with unique key prevents other Haier freezer owners’ access to your precious samples, also comes with space for a padlock for that extra security.
  • USB Interface - Enables users to download historical temperature data for compliance/auditing purposes.
  • Multi-Level Alarms - Alarming functions that include hi and low temperature, sensor error, power failure, high ambient, clean filter and door ajar.
  • USB Interface - Enables users to download historical temperature data for compliance/auditing purposes.

PNFREEZERS

Operating Temp Range
-40°C to -86°C
Style
Upright
Monitoring System
Yes
SKU Number Cu Ft Operating Temp Range Style Monitoring System Price Quantity Add to Cart
DW-86L578SAT 20.4 Cu Ft (578 L) -40°C to -86°C Upright 220 V 60 HZ Yes
21995.00
Each
DW-86L578ST 20.4 Cu Ft (578 L) -40°C to -86°C Upright 115 V 60 HZ Yes
21995.00
Each
DW-86L728SAT 25.7 Cu Ft (728 L) -40°C to -86°C Upright 220 V 60 HZ Yes
23895.00
Each
DW-86L728ST 25.7 Cu Ft (728 L) -40°C to -86°C Upright 115 V 60 HZ Yes
23895.00
Each
