Home > Cold Storage > Freezers > - 80C Freezers > Upright Freezers > Haier Ultra-Low Temperature Freezer

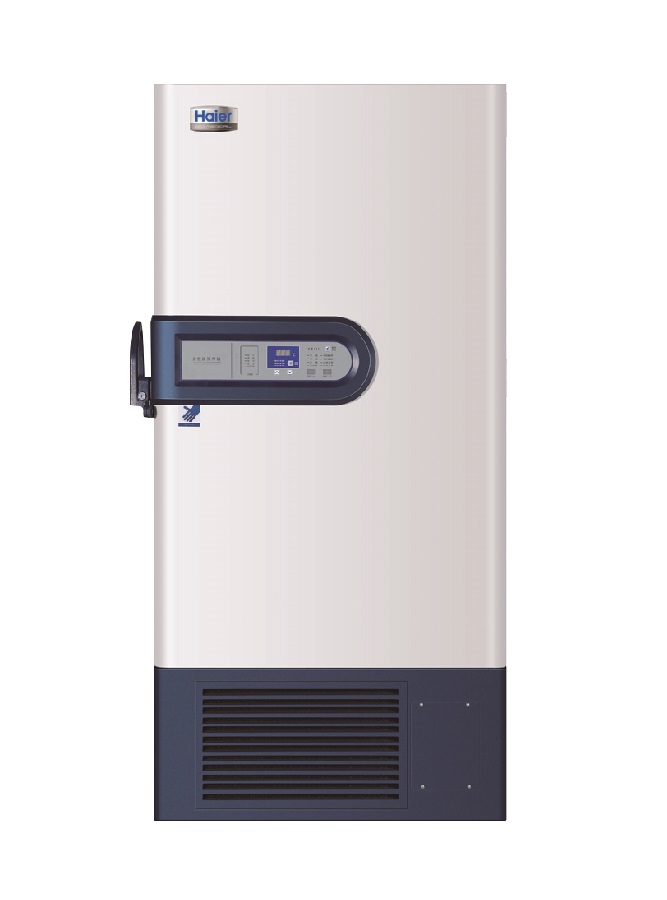

Haier Ultra-Low Temperature Freezer

Limited-Time Promo Offer!

Item #: ASULTLOWFREZ

Specifications

	DW-86L338J	DW-86L338JA	DW-86L578J	DW-86L578JA	DW-86L728J	DW-86L728JA	DW-86L828JA
	DW-86L338J	DW-86L338JA	DW-86L578J	DW-86L578JA	DW-86L728J	DW-86L728JA	DW-86L828JA
Technical Data
Type	-86°C ULT Freezer	-86°C ULT Freezer	-86°C ULT Freezer	-86°C ULT Freezer	-86°C ULT Freezer	-86°C ULT Freezer	-86°C ULT Freezer
Cabinet Type	Upright	Upright	Upright	Upright	Upright	Upright	Upright
Climate Class	N	N	N	N	N	N	N
Cooling Type	Direct Cooling	Direct Cooling	Direct Cooling	Direct Cooling	Direct Cooling	Direct Cooling	Direct Cooling
Defrost Mode	Manual	Manual	Manual	Manual	Manual	Manual	Manual
Refrigerant	HC	HC	HC	HC	HC	HC	HC
Noise Lever (dB)	50	50	50	50	50	50	51.5
Performance
Cooling performance	-86°C	-86°C	-86°C	-86°C	-86°C	-86°C	-86°C
Temperature Range	-40°C to -86°C	-40°C to -86°C	-40°C to -86°C	-40°C to -86°C	-40°C to -86°C	-40°C to -86°C	-40°C to -86°C
Control
Controller	Microprocessor	Microprocessor	Microprocessor	Microprocessor	Microprocessor	Microprocessor	Microprocessor
Display	LED	LED	LED	LED	LED	LED	LED
Electrical Data
Power Supply	115V, 60Hz	200V, 60 Hz	115V, 60Hz	220V, 60Hz	115V, 60Hz	220V, 60Hz	220V, 60Hz
Power	700W	700W	1000W	1000W	1000W	1000W	1100W
Electrical Current	11A	11A	18A	9A	18A	10A	10A
Dimensions
Capacity(L/Cu.Ft)	338 L / 11.9 Cu Ft	338 L / 11.9 Cu Ft	578 L / 20.4 Cu Ft	578 L / 20.4 Cu Ft	728 L / 25.7 Cu Ft	728 L / 25.7 Cu Ft	828 L / 29.2 Cu Ft
Net/Gross Weight(approx)	238/278 kg	238/278 kg	300/330 kg	300/330 kg	345/385 kg	345/385 kg	380/410 kg
	524.7/612.9 lbs	524.7/612.9 lbs	661.4/727.5 lbs	661.4/727.5 lbs	760.6/848.8 lbs	760.6/848.8 lbs	837.7/903.9 lbs
Interior Dimensions	465 x 630 x 1165 mm	465 x 630 x 1165 mm	620 x 716 x 1310 mm	620 x 716 x 1310 mm	766 x 716 x 1310 mm	766 x 716 x 1310 mm	870 x 716 x 1310 mm
(W x D x H)	18.3 x 24.8 x 45.9 in	18.3 x 24.8 x 45.9 in	24.4 x 28.2 x 51.6 in	24.4 x 28.2 x 51.6 in	30.2 x 28.2 x 51.6 in	30.2 x 28.2 x 51.6 in	34.3 x 28.2 x 51.6 in
Exterior Dimensions	812 x 893 x 1846 mm	812 x 893 x 1846 mm	895 x 980 x 1960 mm	895 x 980 x 1960 mm	1041 x 980 x 1980 mm	1041 x 980 x 1980 mm	1145 x 980 x 1980 mm
(W x D x H)	32.0 x 35.2 x 72.7 in	32.0 x 35.2 x 72.7 in	35.4 x 38.6 x 77.2 in	35.4 x 38.6 x 77.2 in	41.0 x 38.6 x 78.0 in	41.0 x 38.6 x 78.0 in	45.1 x 38.6 x 78.0 in
Packing Dimensions	875 x 970 x 2010 mm	875 x 970 x 2010 mm	950 x 1055 x 2125 mm	950 x 1055 x 2125 mm	1090 x 1050 x 2150 mm	1090 x 1050 x 2150 mm	1190 x 1045 x 2150 mm
(W x D x H)	34.4 x 38.2 x 79.1 in	34.4 x 38.2 x 79.1 in	37.4 x 41.5 x 83.7 in	37.4 x 41.5 x 83.7 in	42.9 x 41.3 x 84.6 in	42.9 x 41.3 x 84.6 in	46.9 x 41.1 x 84.6 in
Container load (20'/40'/40'H)	12/24/2024	12/24/2024	12/24/2024	12/24/2024	12/20/2020	12/20/2020	8/20/2020
Functions
High/Low Temperature	Y	Y	Y	Y	Y	Y	Y
Remote Alarm	Y	Y	Y	Y	Y	Y	Y
Hot Condenser	Y	Y	Y	Y	Y	Y	Y
Power Failure	Y	Y	Y	Y	Y	Y	Y
High/Low Voltage	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Sensor Error	Y	Y	Y	Y	Y	Y	Y
Low Battery	Y	Y	Y	Y	Y	Y	Y
High Ambient Temp	Y	Y	Y	Y	Y	Y	Y
Door Ajar	Y	Y	Y	Y	Y	Y	Y
Accessories
Caster	Y	Y	Y	Y	Y	Y	Y
Foot	Y	Y	Y	Y	Y	Y	Y
Test Hole	Y/2	Y/2	Y/2	Y/2	Y/2	Y/2	Y/2
Shelves/Inner Doors	3 \| 2	3 \| 2	3 \| 4	3 \| 4	3 \| 4	3 \| 4	3 \| 4
Temperature Recorder	Optional	Optional	Optional	Optional	Optional	Optional	Optional
USB Interface	Y	Y	Y	Y	Y	Y	Y
Rs232/485 Interface	Optional	Optional	Optional	Optional	Optional	Optional	Optional
CO2 Backup System	Optional	Optional	Optional	Optional	Optional	Optional	Optional
LN2 Backup System	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Racks And Boxes	Optional	Optional	Optional	Optional	Optional	Optional	Optional

FPL1 was discontinued. We are upgrading you to more choices with PR1MA™ Protein Markers.

PR1MA™ Protein Markers

PR1MA™ All Blue, Regular Range Protein Markers

PR1MA™ All Blue, Regular Range Protein Markers are blue protein standards with 10 or 11 pre-stained proteins covering a wide range of molecular weights from 10 to 180 kDa in Tris-Glycine buffer (9 to 170 kDa in Bis-Tris (MOPS) buffer and Bis-Tris (MES) buffer). Proteins are covalently coupled with a blue chromophore, and two reference bands (at 25 kDa and 72 kDa, in the presence of Tris- Glycine buffer) are enhanced in intensity

Loading Volume

· 3 μL or 5 μL per loading for clear visualization during electrophoresis on a 15-well or 10-well mini-gel.

· 1.5~2.5 μL per well for general Western blotting transfer.

The markers are supplied at a concentration of approximately 0.1~0.5 mg/ml of each protein in the buffer (20 mM Tris-phosphate, pH 7.5 at 25°C, 2% SDS, 0.2 mM Dithiothreitol, 3.6 M Urea, and 15% (v/v) Glycerol).

PR1MA™ Tricolor Protein Markers

PR1MA™ Tricolor Protein Markers are three-color protein standards with 10, 12, or 13 pre-stained proteins covering a wide range of molecular weights from 5 to 245 kDa in Tris-Glycine buffer (3.5 kDa to 235 kDa in

Bis-Tris (MOPS) buffer and Bis-Tris (MES) buffer). Proteins are covalently coupled with a blue chromophore except for two reference bands, one green and one red band (at 25 kDa and 75 kDa, respectively, in the presence of Tris-Glycine buffer).

Loading Volume

· 3 μL or 5 μL per loading for clear visualization during electrophoresis on a 15-well or 10-well mini-gel.

· 1.5~2.5 μL per well for general Western blotting transfer.

The markers are supplied at a concentration of approximately 0.1~0.4 mg/ml of each protein in the buffer (20 mM Tris-phosphate (pH 7.5 at 25°C), 2 % SDS, 0.2 mM Dithiothreitol, 3.6 M Urea, and 15 % (v/v) Glycerol).

Item#	Color	Bands	Range
PR5010-BL	Blue	10	9-180 kDA
PR5011-BL	Blue	11	9-180 kDA
PR5010-TC	Tri-Color	10	9-180 kDA
PR5012-TC	Tri-Color	12	9-245 kDA
PR5013-TC	Tri-Color	13	9-245 kDA

SKU Number	Cu Ft	Operating Temp Range	Style	Monitoring System	Price	Quantity	Add to Cart
DW-86L338J	11.9 Cu Ft (338 L)	-40°C to -86°C	Upright 115 V 60 HZ	Yes, see Spec Tab	11996.0000 11996.00 Each
DW-86L338JA	11.9 Cu Ft (338 L)	-40°C to -86°C	Upright 229 V 60 HZ	Yes, see Spec Tab	16790.0000 16790.00 Each
DW-86L578J	20.4 Cu Ft (578 L)	-40°C to -86°C	Upright 115 V 60 HZ	Yes, see Spec Tab	14995.0000 14995.00 Each
DW-86L578JA	20.4 Cu Ft (578 L)	-40°C to -86°C	Upright 220 V 60 HZ	Yes, see Spec Tab	14995.0000 14995.00 Each
DW-86L728J	25.7 Cu Ft (728 L)	-40°C to -86°C	Upright 115 V 60 HZ	Yes, see Spec Tab	16995.0000 16995.00 Each
DW-86L728JA	25.7 Cu Ft (728 L)	-40°C to -86°C	Upright 220 V 60 HZ	Yes, see Spec Tab	16995.0000 16995.00 Each
DW-86L828JA	29.2 Cu Ft (828 L)	-40°C to -86°C	Upright 220 V 60 HZ	Yes, see Spec Tab	17995.0000 17995.00 Each
