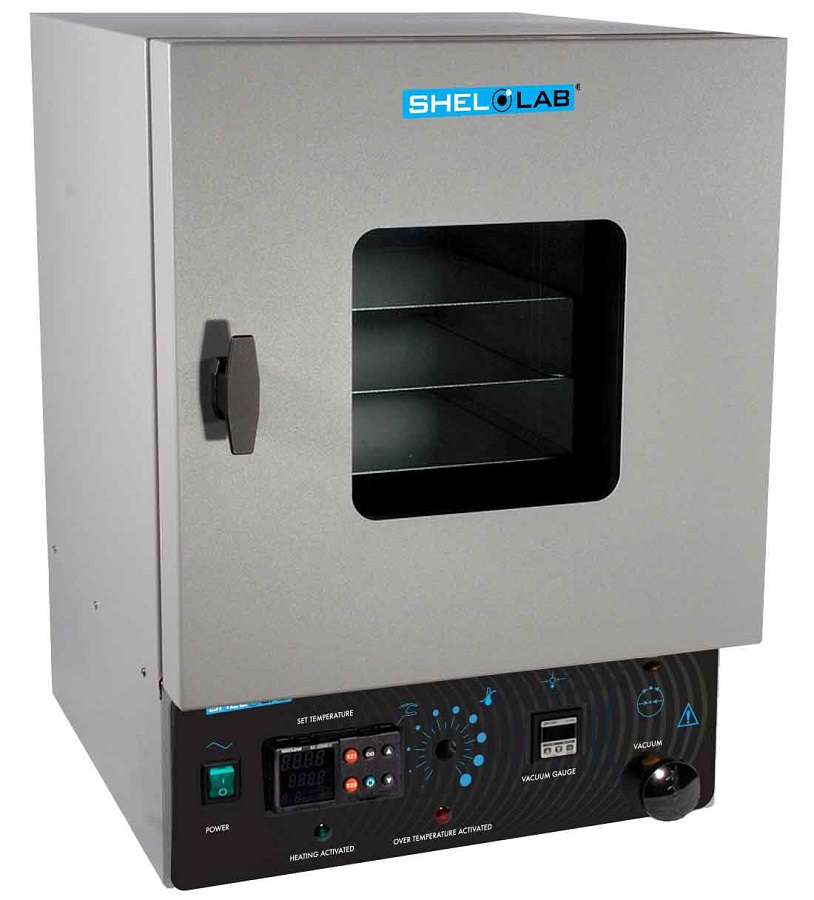

Shel Lab Vacuum Oven

Item #: ASVACOVEN

2 year limited warranty


SVAC1
SVAC2
SVAC4
EXTERIOR DIMENSIONS (W × D × H)
17.5 × 22.8 × 23.5/(445 mm × 580 mm × 597 mm)
20.5 × 29.5 × 26.3/(521 mm × 750 mm × 667 mm)
26.5 × 34.5 × 32.3/(673 mm × 876 mm × 819 mm)
INTERIOR DIMENSIONS (W × D × H)
9 × 12 × 9/(228 mm × 304 mm × 228 mm)
12 × 20 × 12/ (304 mm × 508 mm × 304 mm)
18 × 24 × 18/(457 mm × 610 mm × 457 mm)
VOLUME
0.56 cu.ft. (15.9 L)
1.67 cu.ft. (47.2 L)
4.5 cu.ft. (127.4 L)
SHELF DIMENSIONS (W × D)
8.75 × 11 (222 mm × 280 mm)
11.3 × 19.0 (287 mm × 483 mm)
17.2 × 22.9 (437 mm × 582 mm)
UNIT WEIGHT
105 lbs (48 kg)
179 lbs (81 kg)
360 lbs (163 kg)
INTERIOR METAL
300 SST
300 SST
300 SST
EXTERIOR METAL
Painted Cold Roll Steel
Painted Cold Roll Steel
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +10C - 220C
Amb +10C - 220C
Amb +10C - 220C
TEMPERATURE UNIFORMITY - MIDRANGE
6% of SP °C
6% of SP °C
6% of SP °C
TEMPERATURE STABILITY - MIDRANGE
0.1 °C
0.2 °C
0.25 °C
CONTROLLER TYPE
Digital
Digital
Digital
DISPLAY RESOLUTION
0.1 °C
0.1 °C
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 7.0 Amps
110-120 VAC, 50/60 Hz, 10.0 Amps
110-120 VAC, 50/60 Hz, 13.0 Amps
MAX HVAC LOAD
2497 BTUs/hr
3766 BTUs/hr
4749 BTUs/hr
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
UL 61010-1, EN 61010-1, CSA 61010-1, CE
UL 61010-1, EN 61010-1, CSA 61010-1, CE
462.0700
Each
Quantity:
Quantity Price
1 462.07
PCR DNA Clean-up Kit

High Throughput PCR Clean-Up


The 96-well PCR Clean-Up/DNA Extraction Kits provide a high-throughput, rapid and economical method to purify DNA fragments. Chaotropic salt is used to denature enzymes and in this condition, DNA fragments are bound by the glass fiber matrix in each well of the plate. Once the contaminants have been removed, the purified DNA is eluted by a low salt elution buffer or water. Salts, enzymes, and unincorporated nucleotides are effectively removed from reaction mixtures without toxic phenol extraction or alcohol precipitation. This entire protocol can be completed in 30-40 minutes, and the eluted DNA is ready to use in restricted digestion, ligation, PCR, and sequencing reactions.


Sample Size:

Up to 50µl of PCR product
Up to 50mg of agarose slice

Format:

96-Well Plates

Operation:

Centrifuge/Vacuum manifold

Binding Capacity:

10ug per well

DNA Size:

50bp-10kb

Recovery:

80-90% for Gel Extraction
90-95% for PCR Clean-Up

Operation Time:

30 min for PCR Clean-Up
40 min for Gel Extraction

PNRNADNA

# of Samples
4 x 96
Source Cell
DNA
Isolation type
DNA
SKU Number Type Operating Temp Vol Price Quantity Add to Cart
SVAC1 Vacuum Oven 10°C above ambient to 220°C 0.6 Cu Ft
5727.57
Each
SVAC2 Vacuum Oven 10°C above ambient to 220°C 1.7 Cu Ft
7347.39
Each
SVAC4 Vacuum Oven 10°C above ambient to 220°C 4.5 cu ft
14213.03
Each
Vacuum Oven
Shel Lab Vacuum Oven
Special Order
Quantity:
