Benchmark Rotating Mixer

Includes 50, 15, and 1.5ml
Item #: LDR-1000

2 year warranty

Technical Data:

Specifications GCM-24 GCM-R-24
Maximum Speed 15,000 rpm (200-15,000 rpm),
10 rpm increment		 15,000 rpm (200-15,000rpm),
10 rpm increments
Maximum RCF 21,380 x G, (10 x G Increment) 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm +/- 20 rpm
Temperature N/A -20°C to 40°C
Rotor Capacity Twenty-Four (24) 1.5 / 2.0 mL tubes Twenty-four (24) 1.5 / 2.0 mL tubes
Run Time 30 sec - 99 min or continuous 30 sec - 99 min or continuous
Power 5A, 500W 10A, 400W
Acceleration Time 25 Seconds 25 Seconds
Braking Time 25 Seconds 25 Seconds
Dimension (W x D x H) 280 x 364 x 266 mm
(11.0 x 14.3 x 10.5")		 338 x 580 x 324 mm
(13.3 x 22.8 x 12.8")
Weight 12 Kg (26.5 lbs) 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA CE, cTÜVus, FCC, MCA
Warranty 2 Years 2 Years

Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag



1099.89
Each
Quantity:
Quantity Price
1 1099.89

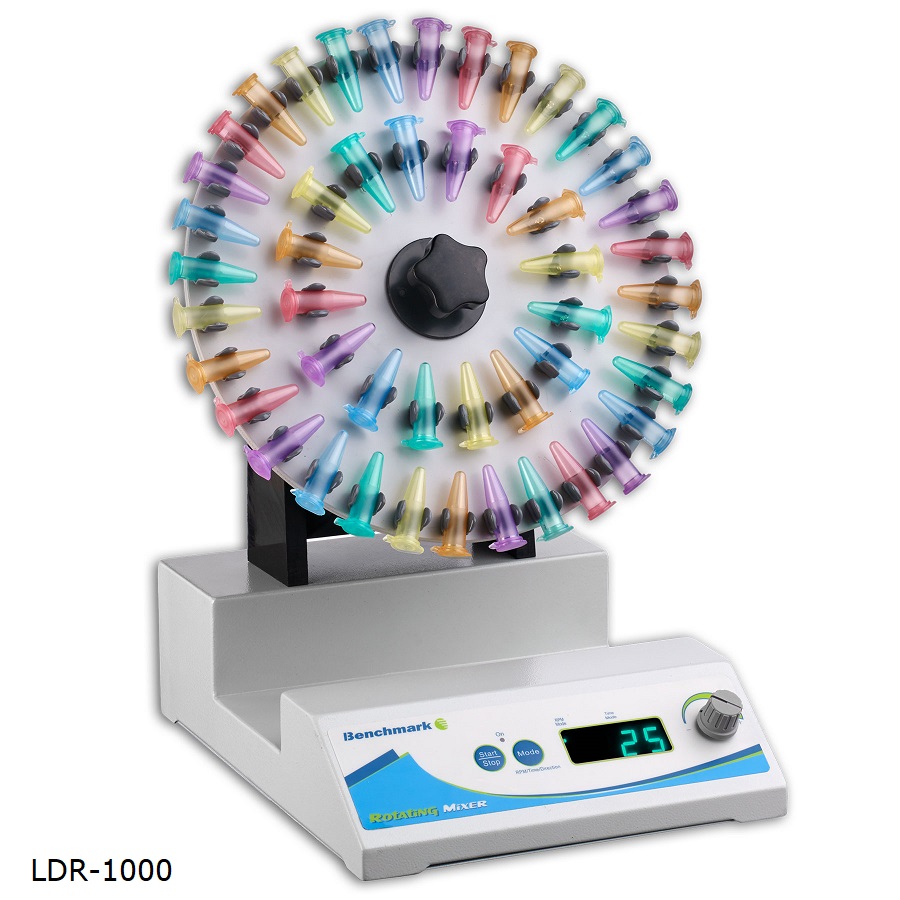

Rotating Mixer

The Benchmark Rotating Mixer provides gentle to vigorous mixing of laboratory samples up to 50ml. With adjustable speed control and tilt angle, the Rotating Mixer is ideal for a variety of applications, from mixing blood samples to the preparation of homogenous dispersions.


Three rotisserie tube holders are included for mixing all common laboratory sample tubes and each individual tube holder is rubber coated to provide a secure grip, preventing any "wobble" or loosening during mixing at high speeds.


For more intense mixing, a unique reversing mode is available. In reversing mode, the mixer rotates for up to 360° then stops and rotates in the reverse direction. This back and forth motion occurs repeatedly until the set time has expired.


Technical Specifications


Specification





Speed

Variable, 1 to 40 rpm



Tilt Angle

Variable, 0 ° to 90 °



Capacity

12 x 50 mL, 20 x 15mL or 48 x 2 mL



Timer

1 second to 9 hours, or continuous



Operating Temperature Range

+4 to +60 ° C



Dimension

8.25 x 10.5 x 12.5 in

21 x 27 x 32 cm

Weight

7 lbs

3.2 kg

Electrical

100V to 240V, 50-60 Hz

25W

Warranty

2 years



PNROLLER

Speed
Variable, 1 to 40 rpm
Incubator Safe
No
Size
8.25 x 10.5 x 12.5 in
Rotating Mixer
Benchmark Rotating Mixer
